Download the sample Power Pivot model
CMBI have developed this NSW Residential Sales Property Growth Power Pivot model using Excel 2010 with the Power Pivot 2012 SP1 Add In which is FREE from Microsoft. For your convenience you can download a pre-converted Excel 2013 model too.
- Click here to download NSW Residential Sales Property Growth Power Pivot model for Excel 2010
- Click here to download NSW Residential Sales Property Growth Power Pivot model for Excel 2013
NEW! Excel 2016 version with Power Query
NSW Residential Sales Property Growth Power Pivot model for Excel 2016 uses advanced Power Query features. The model also features Sydney sales price data up to Q1 2018.
- Click here to download NSW Residential Sales Property Growth Power Pivot model for Excel 2016
Also interested in Power Query for Excel?
CMBI have also developed a World Cup 2018 Power Query sample which includes an Excel file to download, notes, and instructional video.
Introduction to NSW Residental Sales Property Growth Power Pivot Model
The NSW Residential Sales Property Growth Power Pivot model demonstrates some key features of Power Pivot modelling, DAX calculations, and Excel visualisation using data that is engaging yet relatively straightforward to understand. The workbook contains a number of worksheets which are briefly described below.
Overview sheet
The Overview sheet allows you to analyse sales property growth for houses, units, or all property in NSW for any period between 1991 and Q1 2015. The data is grouped by Local Government Area (LGA) and can be filtered by Rings which are defined by their proximity to the CBD. The Overview sheet uses the following features
- Excel Pivot Table linked to Power Pivot model
- Conditional formatting linked to Pivot Table measure in Power Pivot model
- DAX time intelligence and advanced DAX calculations using CALCULATE statement for measures and calculated columns
- Slicers linked to the Pivot Table which act as parameters for viewing different data cuts
NSW Property Trends in Excel Pivot Table with conditional formatting
Price Trend sheet
The Price Trend sheet allows you to visualise growth for one of more LGAs. The Excel Chart is linked to the Power Pivot model via a Pivot Table in a hidden sheet. Interact with the Slicers to add or remove one or more LGAs

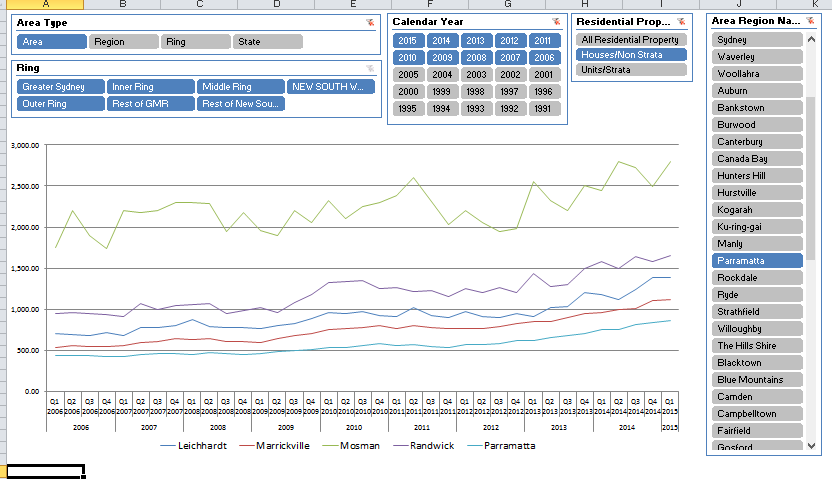

NSW Property Trends in Excel Pivot Chart
Growth sheet
The Growth sheet uses Excel conditional formatting to provide a Heat Map effect for visualising growth for NSW Residential Property. The user can adjust the time period or see more LGAs in the table on the right of the sheet by interacting with the Slicers

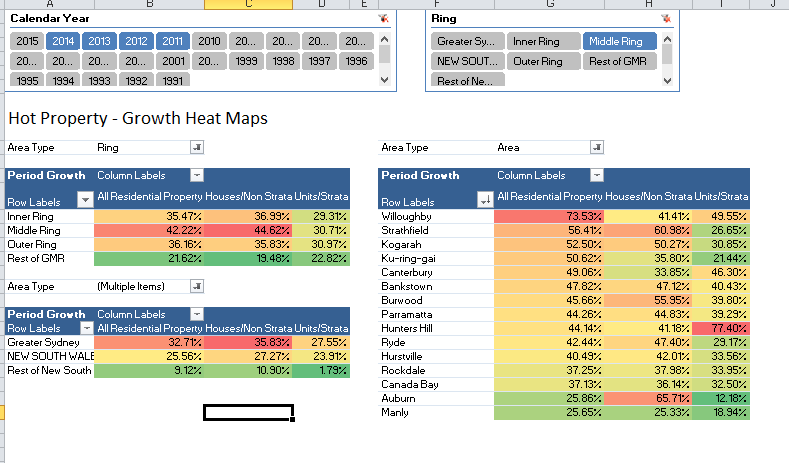

NSW Property Growth statistics in Excel Pivot Table with heat-map style conditional formatting
Time Intelligence sheet
Time Intelligence is a key feature of Power Pivot. DAX Time Intelligence functions are used in many of the calculations in this model. This Time Intelligence sheet makes it easier for users to see the behaviour of different combinations of DAX Time Intelligence functions against a single value

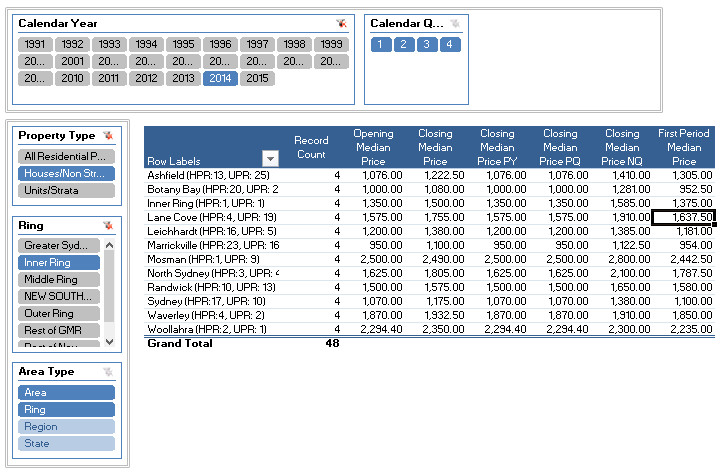

NSW Property Growth statistics using DAX Time Intelligence functions
Technical details about the sample Power Pivot model
The workbook is unprotected and you are free to add your own visualisations and calculations to the model. If you have any feedback about the model or notice any errors or points for improvement please contact colin@cmbi.com.au
Power Pivot model data
The model uses data from the NSW FCS Government Department website. You can obtain the original data here. CMBI have manipulated this raw data using Power Query to create the final tables seen in the model. These tables are:
- Area Region - which is a list of geographic regions at various levels within NSW
- Median Sales Price Residential Property - this table contains all the median sale price data for each quarter in the period and for each Area Region
- Date - a distinct list of quarter end dates used for the median sale price data
The median price data in the model is non-aggregatable. It is not valid to add two median values together. Instead the calculations focus on comparing these median values over time. Although we cannot aggregate the median prices, the Area Region table contains geographic regions at various levels and the median prices for these aggregate region-levels are contained in the data set as pre-calculated values.

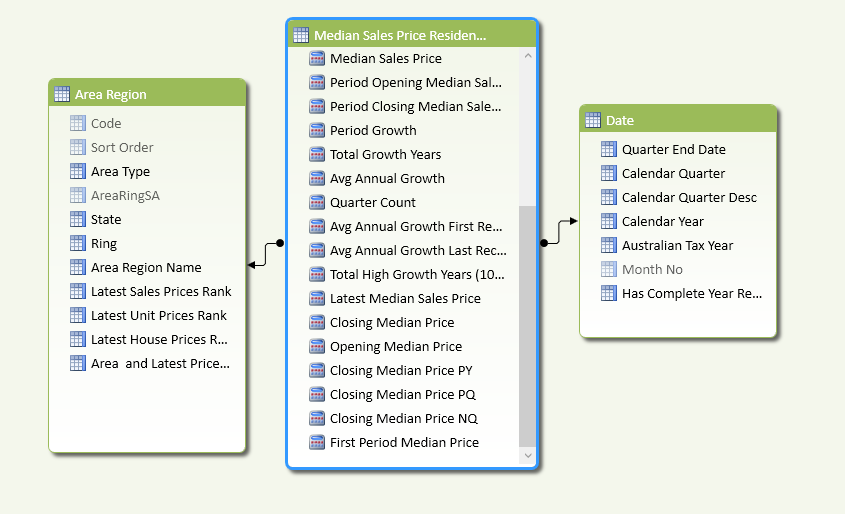

NSW Property Growth Excel Pivot Pivot Model Diagram view
Power Pivot model calculations
The model defines a number of calculations using DAX. DAX is similar to Excel formulas but more powerful for advanced modelling scenarios. You can inspect the formula behind any of the values in the Pivot Tables by opening the Power Pivot window and selecting the Median Sales Price Residental Property sheet in the Data View from the Home tab. The bottom panel of this screen shows all the calculations and clicking on one will show the DAX formula in the formula bar

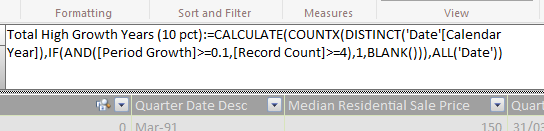

Power Pivot window showing a DAX calculation in the formula bar
DAX formulas are very powerful and can be used to solve most modelling and analytics requirements. Some features include
- Time Intelligence which can be used to calculated YTD, parallel periods, growth, and opening and closing balances
- CALCULATE statement that can manipulate the context of a calculation for complex set based analysis or advanced comparisons and correlations
- Text manipulation to add groupings, concatenate columns, or create additional descriptive attributes
- Most Excel formulas can be translated into DAX formulas. DAX also has capability beyond standard Excel formulas.

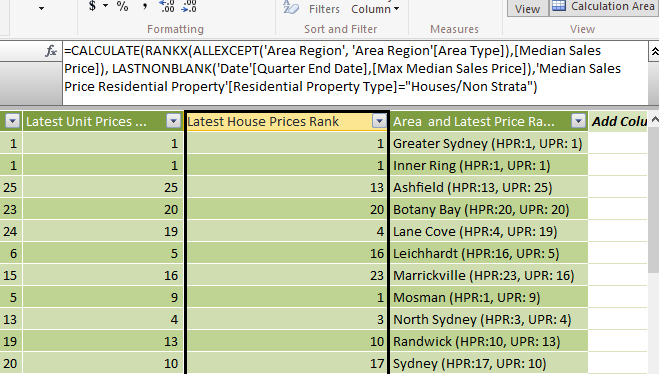

Power Pivot formula bar showing DAX calculation using the CALCULATE statement
